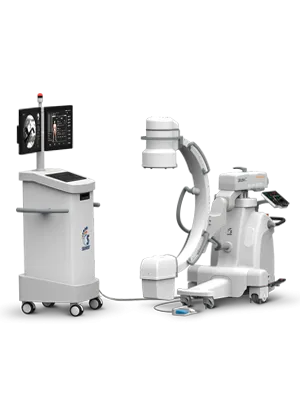

SkanRay SkanC High Frequency Mobile C-Arm Package

The Skan C High Frequency Mobile Surgical C-Arm X-ray Equipment. Ideal for use in Neurology, Orthopaedic, Urology, Gastrointestinal, Pain management, Interventional & Peripheral Vascular Images.

SKAN C, with its compact space-saving design, fits easily in a small work space thereby allowing more free space for all your C-arm applications. A low lateral height helps to reduce skin irradiation levels and also meets low-height patient handling systems.

Benefits of the SkanRay SkanC

• Safest C-Arm in its class with virtually zero leakage radiation.
• Pulse Fluoroscopy Mode up to 12mA, produces good-quality images with minimum effective exposure to radiation.
• Vascular Mode with DSA, Trace, and Road Map tools for efficient vascular applications.
• Image Capture with 1k x 1k resolution for exceptional image quality.
• Multi-Mode functionality accommodates vascular, pulsed fluoroscopy, RAD, and fluoroscopy.
• Virtual Collimation allows ROI selection without additional exposure reducing the dose to the patient.
• Storage of over 100,000 images eliminating the need for constant image backup.
• Laser Aimer for accurate positioning of the patient without radiation.
• 18" x 18" Dual High definition Monochrome LED Monitors.
• DICOM 3 compliant - Send, Receive, Print, DICOM CD, MWL and MPPS.
• Line measurement to measure bones or screws during surgery.

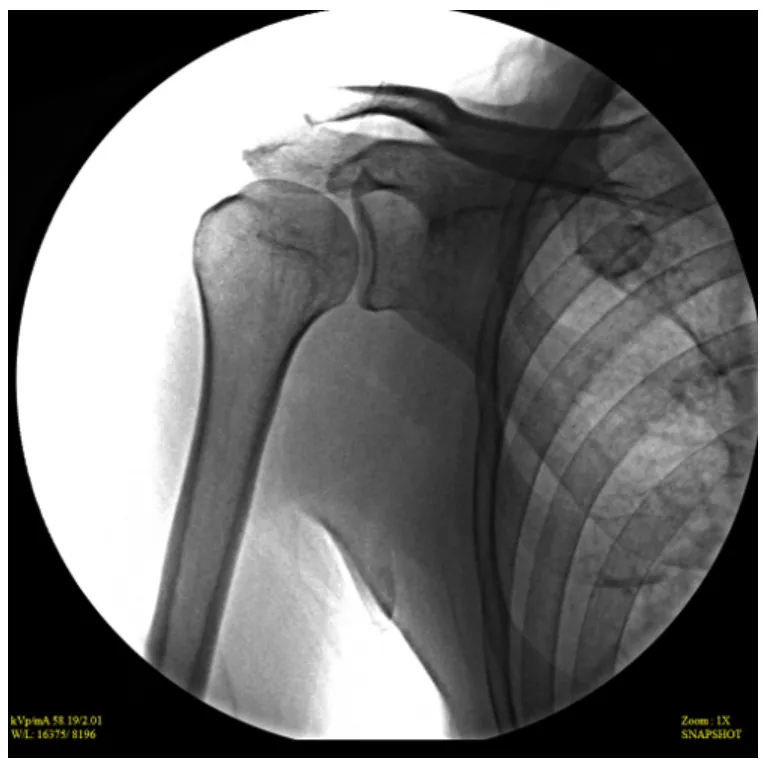

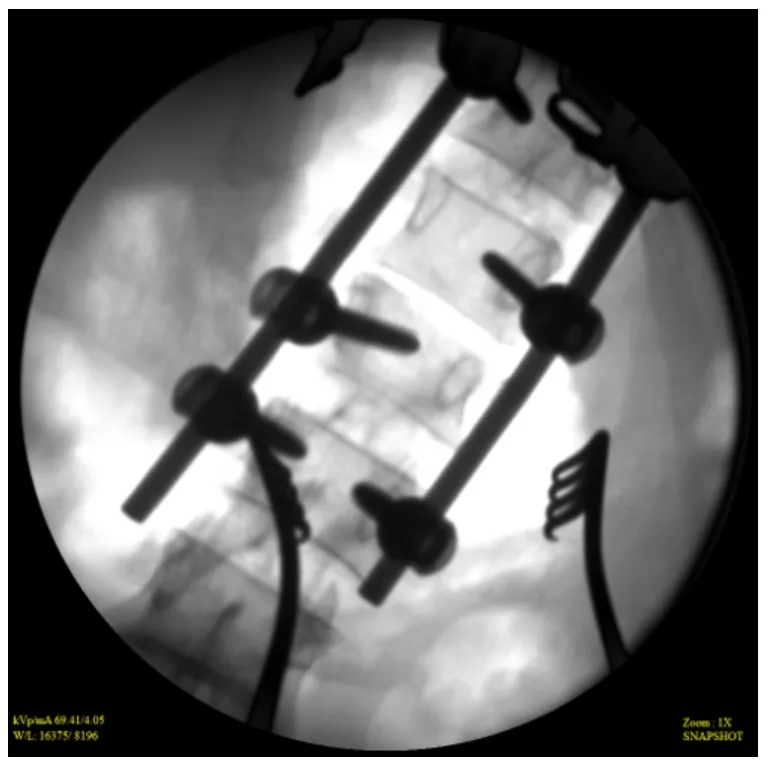

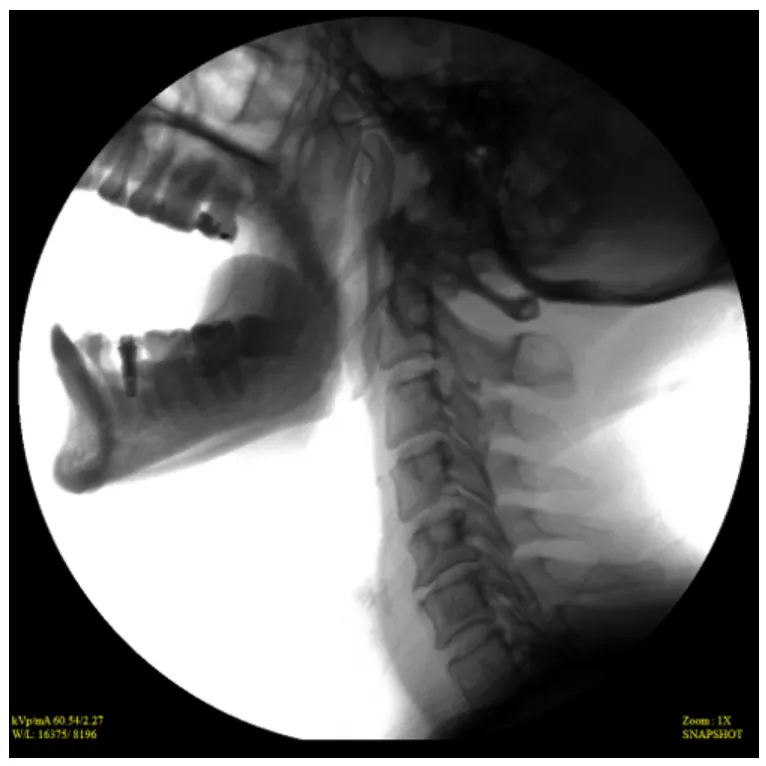

• Snapshot feature produces Digital Radiography image quality in fluoro mode.
• Studies can be saved in MKV video, JPEG & DCM image formats.
• SID - 95cm and Free space -75cm.
• Suitable for Orthopedic, Spine, Neuro, Urology, GI & Vascular.

 SkanRay User Interface

• 10.4" TFT LCD touch screen display; 67 ft-L Brightness; SVGA 800 (H) x 600(V) resolution; anti-glare w/wide view.
• Supports optical encoder and hot keys for ease of operation, laser aimer control, and menu-driven operation.
• X-Ray Tube:
• Fixed Anode.
• Nominal Focal Spot Value - 0.6/1.8 as per IEC60336.
• Maximum Anode Heat Capacity - 56kHU.
• Maximum Housing Heat Capacity - 1150kHU.
• Total Filtration - 0.1 inch (2.5mm) of Al eq.

HF X-Ray Generator

• Mode of operation: Fluoroscopy, Radiography.
• Maximum Output in Large Focus - [3.5 kW (220VAC-240VC) -- or -- 2.2kW (110VAC)] for 100mS.
• Maximum Continuous Output in Small Focus - 500W [10 mins].
• kV Range - 40 -110.
• Max Tube Current (Large Focus) - 70mA@50kV, 32mA@110kV [220-240VAC] 55mA@40kV, 20mA@110kV[110VAC].
• Frequency - 80 - 250kHz.
• Continuous / Pulsed Fluoroscopy.
• mA Range for Continuous Fluoro - 0.2 to 8mA.
• mA Range for Pulsed Fluoro - 0.2 to 12mA.
• Digital Snap Shot - 0.2 to 10mA.

Collimator

• Hard & Soft Shudders with Circular IRIS.
• 26 inch Immersion Depth.
• 30-inch Clear Space.
• 18-inch Vertical Travel.
• 8-inch Horizontal Travel.
• Orbital Motion - 40° to 90° Max.
• Virtual Collimation = simulation of collimated area w/out exposure. Controls soft shutter for dense anatomy.
• display along with soft tissue Collimator rotation control to align with the ROI
• RIS Collimation - perfect circular collimation with 9 steps of IRIS.

SkanRay SkanC Warranty

• 5-year parts **Glass is prorated at 20% per year.
• 1-Year Labor Warranty.
• Remote Applications training included.
• Training Onsite Applications training.
