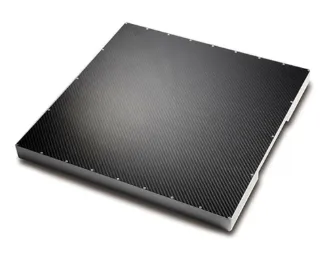

Name: VIVIX-S DR 17x17V Fixed CsI Panel
SKU: 724233

Multi-purpose Portable Flat Panel Detector for Digital Radiography

Panel Features

High Image Quality

*Wide active area of 17″ x 17″ *High spatial resolution with 140㎛

Applications General

Radiography Orthopedic Chiropractic Veterinary

Convenient Usability

*VXvueTM Viewer software program operated under WindowsTM

Stable and Reliable AED (Automatic Exposure Detection)

*Needs no connection to an X-Ray Generator Detector *AP Mode or Detector Only Mode

Technical Specifications of the Panel Package

Model Name	FXRD-1717SA / FXRD-1717SB
Technology	a-Si TFT with photodiode
Scintillator	CsI:Tl / Gd2O2S:Tb
Pixel Pitch	140 ㎛
Spatial Resolution	3.5 lp/㎜
Pixels	3072 x 3072 pixels
Image Size	17" x 17" (43.0 ㎝ x 43.0 ㎝)
Grayscale	14 bit
Image Acquisition Time	1 s
Recommended Cycle Time	15 s
Data Interface	Gigabit Ethernet
X-ray Generator Interface	Line trigger: DR trigger Mode Auto trigger: AED Mode

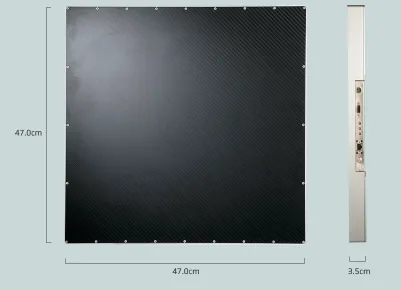

Dimensions	47.0 ㎝ x 47.0 ㎝ x 3.5 ㎝
Weight	11 kg
Battery	-
Dust and Water Resistant	IPX0
X-ray Voltage Range	40 - 150 kVp
Operating Environment	10℃ to 35℃ 30 % to 85 % RH (non-condensing)
Power	DC 24 V, 0.8 A

* Specifications are subject to change without prior notice.

Workstations Specs

1TB Local Mini-PACS in a RAID 1 (2 Total Drives)
Intel Core i3 Processor 6100 CPU (3.7 GHz)
4GB, Windows 7 Professional 64-bit VXvue Acquisition Software
Monitor: 23″ Touch Screen – Resolution 1920×1080 Ratio: 1000:1
Licensed MIRAssist Bridge 2x1TB (1TB RAID 1)

Warranty

	Five (5) year Panel Manufacturer Warranty
	Three (3) year Computer Acquisition Station and Monitor Warranty from the Manufacturer* *Station and Monitor Warranty plan includes Next Business Day On-site Support from Lenovo

Available Options

SYSTEM OPTIONS

Additional Viewing Licenses
Mobile App for iPad and iPhone
Laptop or Tablet for Mobile Applications
Protective Case with Handle for movable applications

Drop Insurance Coverage

OPTIONAL DROP INSURANCE COVERAGE

Covers damage to the panel caused by an accidental drops
Interest free financing for multi year policies.
Coverage will not be cancelled due to claims.
Pricing is fixed for the duration of the enrollment.
Permanent detector replacement sent directly from the manufacturer.
Coverage is provided for up to (2) occurrences per year.

VXVue Software
The VXVue Acquisition software with Pureimpact ™blends cutting edge technology with a user friendly interface. The software features: easy management for simplified work flow, post-processing algorithm for an efficient diagnosis, various image adjustment tools, a user-friendly touch interface with intuitive GUI, and customizable skins.
